Adaslabs Electrical Roasting Panel : with Simple And Compact For Advance Tech

Electrical roasting machine panels that adjust to needs and budget, starting from manual features, standard PLC to Ultimate PLC.

Contact us Now

get unexpected things

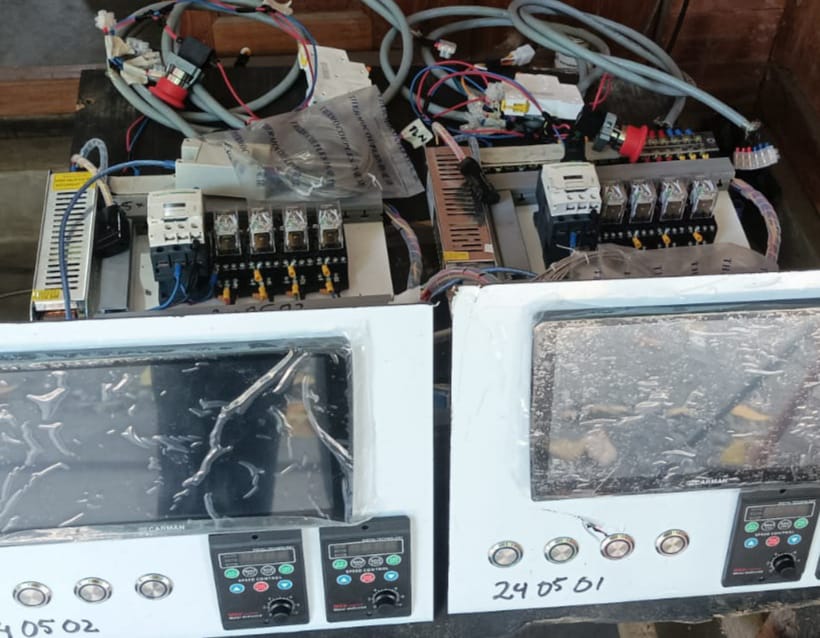

Manual Machine Electrical Panel

Manual roasting machine electrical panel, complete, just install the output cable in the terminal, with the following specifications:

BUY NOW
  • Adas Roast Controller
  • 2 pcs K Type Thermocouple 2 meter length, M8 probe 50mm
  • 4 channel output (Main, Burner, Cooling, Agitator)
  • 12VDC Relay plus 1 220VAC Magnetic Contactor for main current supply
  • 4 Metal Push Button
  • Power Cable + Plug, MCB 2 Pole, Emergency Button, Pilot Lamp
  • 7″ / 10″ Touch Panel Android (optional).
  • 304 Stainless Steel Plate front panel (optional)

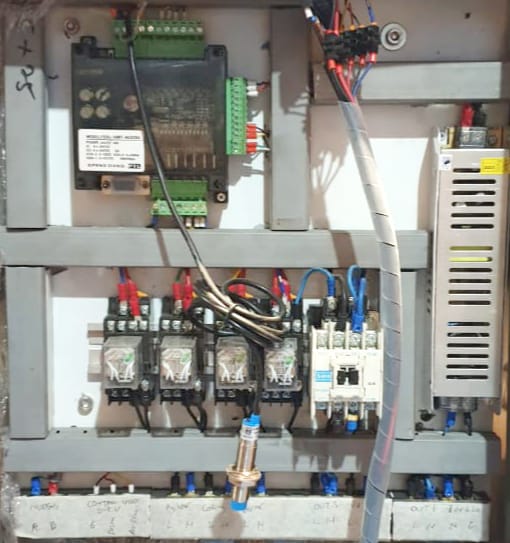

Standard PLC Panel

Standard PLC Machine Panel, ready to support Automation and Machine Learning features, complete with just installing output cables at the terminal, with the following specifications:

BUY NOW
  • Adas Roast Controller
  • 2 pcs K Type Thermocouple 2 meter length, M8 probe 50mm
  • 4 channel output (Main, Burner, Cooling, Agitator)
  • 3 channel 0-5 Vdc or 0-10 Vdc output untuk control Inverter/Motor Driver dan Burner Power
  • 12VDC Relay plus 1 220VAC Magnetic Contactor for main current supply
  • 4 Metal Push Button
  • 2 Potensio for controlling Airflow & Drum
  • Power Cable + Plug, MCB 2 Pole, Emergency Button, Pilot Lamp
  • 7″ / 10″ Touch Panel Android (optional).
  • Pressure Sensor for Airflow & Gas (optional)
  • RPM Sensor (Bonus)
  • 304 Stainless Steel Plate front panel (optional)
